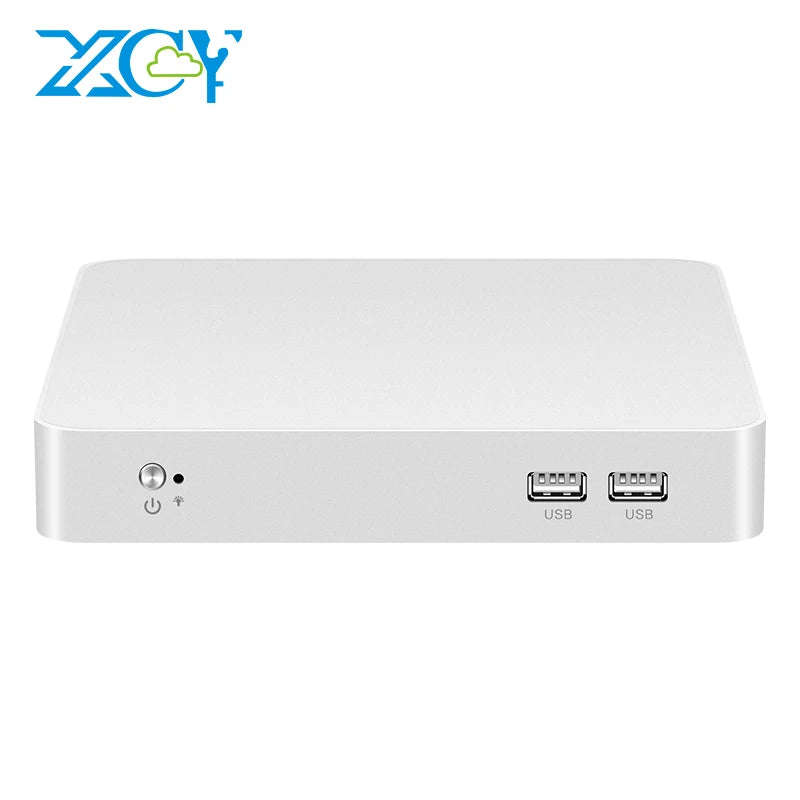

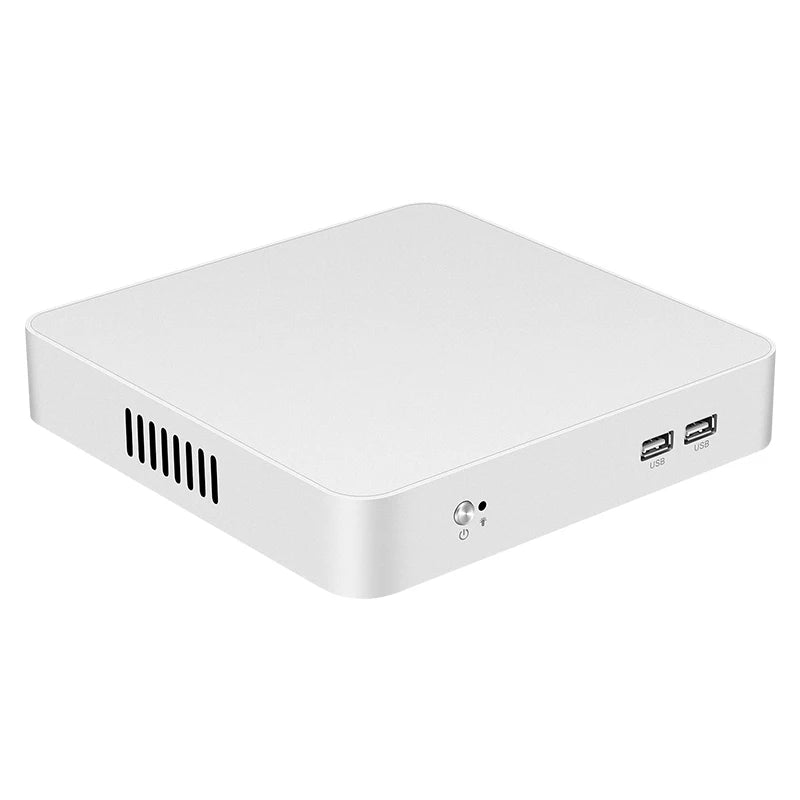

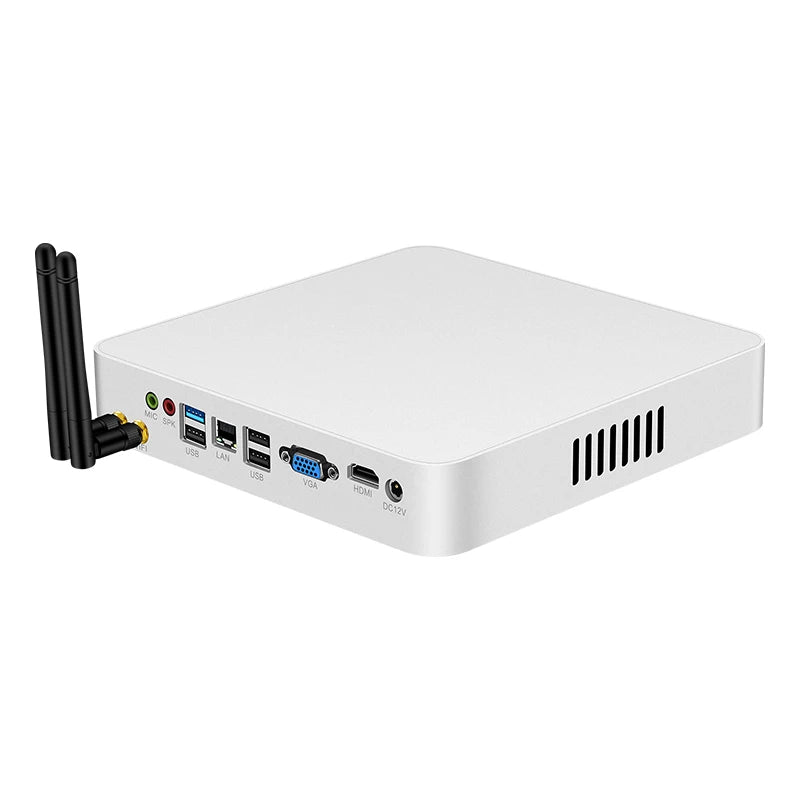

XCY Office Mini PC Intel i7 4500U i5 4200U 3317U Support Windows 10 Linux HDMI VGA Display WiFi Gigabit Ethernet THPC Barebone
Regular price
$874.51
$672.70
23% OFF
SPECIFICATIONS
Brand Name: XCY
Memory Capacity: ≥ 4GB
Hard Drive Capacity: 128GB
Model Number: X26
Processor Model: i7-4500U, i5-4200U, i5-3317U, i3-6157U
Use: Multimedia
Origin: Mainland China
Type: Mini Desktop
Processor Main Frequency: Based on CPU
Graphics Card Type: Integrated Card
Certification: CE
Certification: FCC
Certification: RoHS
Processor Brand: Intel
Type: MINI PC
Memory Types: SODIMM DDR3L / DDR4
Hard Drive: mSATA SSD
Support OS: Windows 10, Windows 8.1, Windows 7, Linux
Ethernet: Realtek RTL 8111H 1000M BaseT LAN
Audio Chip: Realtek ALC662
WiFi: 300Mbps
Video Output: 1x HDMI, 1x VGA
USB Ports: 2x USB3.0, 4x USB2.0 (1037U all USB are USB2.0)
Audio Ports: 1x MIC, 1x SPK, 3.5mm jack
Color: Silvery
Features: Support Virtualization, ACPI, Auto Power on, Wake up on LAN
PC Box Material: Full Aluminum Alloy
Cooling System: Built-in cooler fan
Dimension: 197*197*39mm
Working Voltage: DC 12V 5A
Processors |
Intel Core i5-3317U, 2 cores 4 threads, 3M Cache, 1.70GHz, up to 2.60GHz |
Intel Core i5-4200U, 2 cores 4 threads, 3M Cache, 1.60GHz, up to 2.60GHz | |
Intel Core i7-4500U, 2 cores 4 threads, 4M cache,1.80GHz, up to 3.0GHz | |
Intel Core i3-6157U, 2 cores 4 threads. 3M Cache, 2.40GHz | |
Intel Celeron J1900, 4 cores 4 threads, 2M Cache, 2.00GHz, up to 2.42GHz | |
Intel Celeron 1037U, 2 cores 2 threads, 2 Cache, 1.80GHz | |
MemoryTyes |
i5-3317U /i5-4200U /i7-4500U/ Celeron J1900/celeron 1037U use SODIMM DDR3L 1333/1600MHz |
i3-6157U use SODIMM DDR4 | |
Storage |
mSATA SSD |
Graphics |
Integrated graphics |
Network Interfaces |
GbE RJ45 Realtek 8111H |
Expansion |

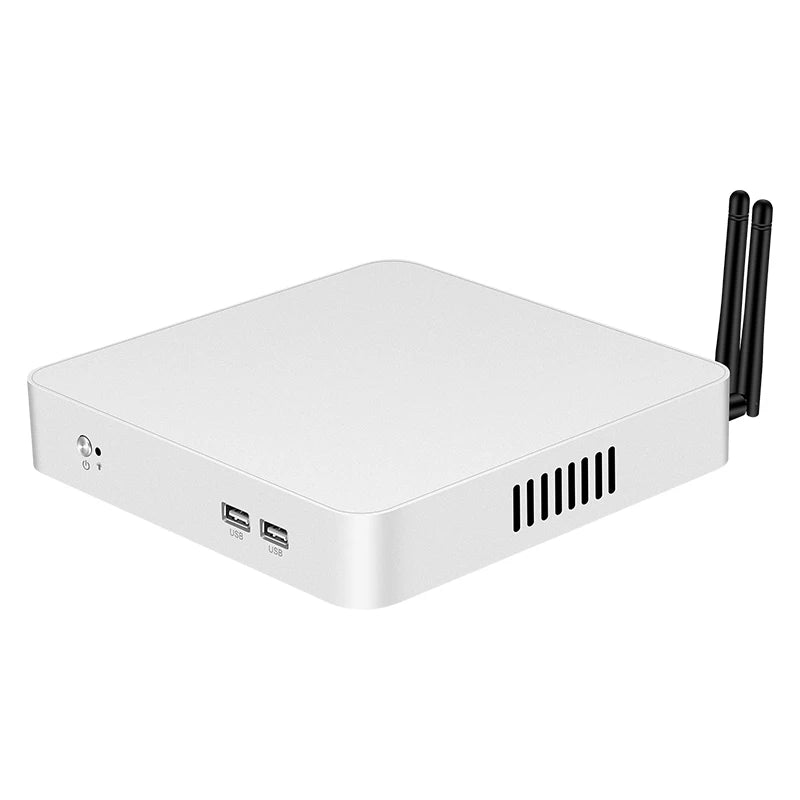

1x Mini PCI-E slot for WiFi/Bluetooth module ( half height size ) |
OS Support |
J1900/i5-4200U/i7-4500U support Windows 7/win8/win10, Linux/Ubuntu |
i3-6157U ssupport Windows 8.1/10, linux/ubuntu | |
i5-3317U /1037U support Windows XP/Win7/8/10, Linux/ubuntu | |

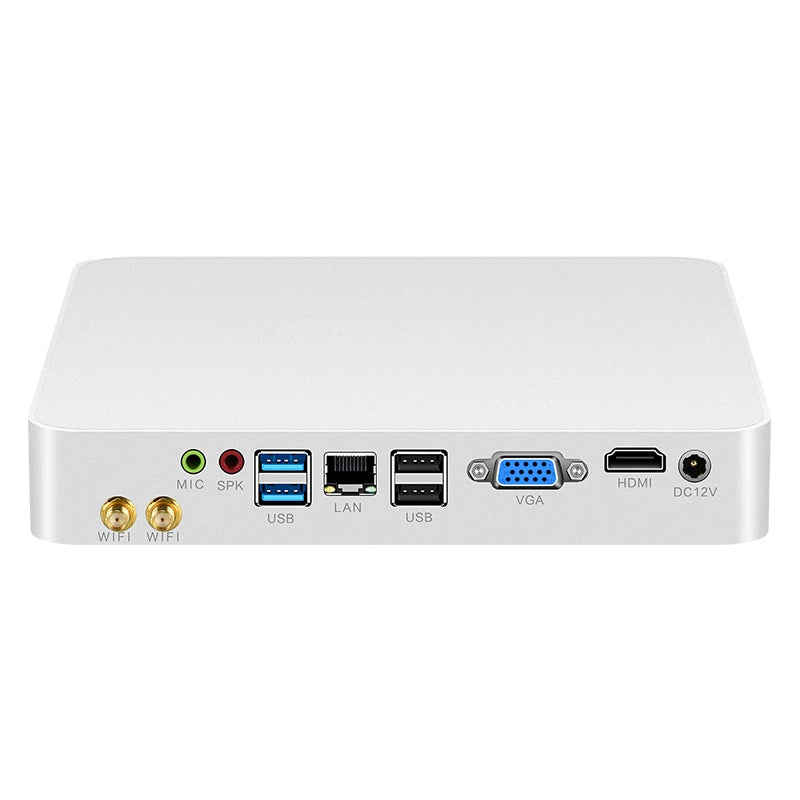

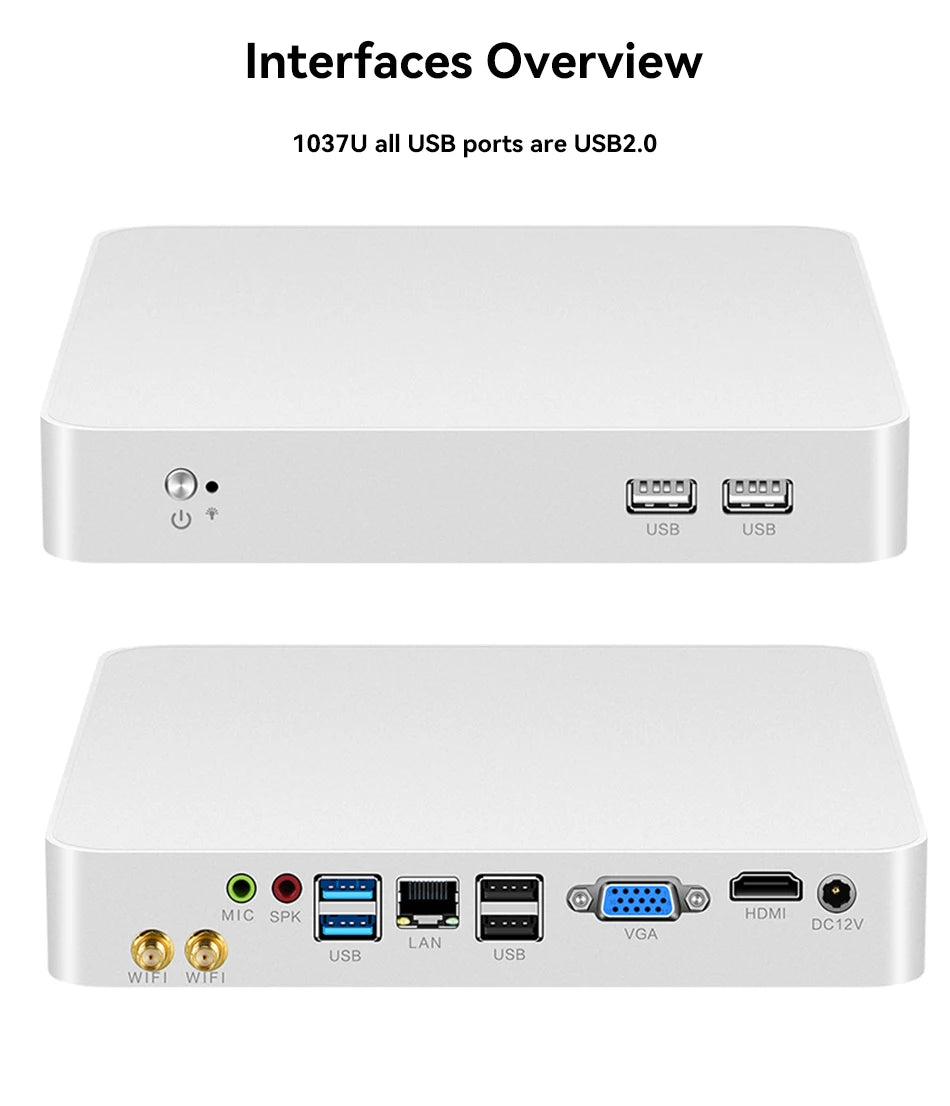

USB Ports |
2x USB3.0 ( 1037U all USB ports are USB2.0 ) |
4x USB2.0 | |
Display Port |
1x VGA, 1x HDMI |
Features |
Support Wake on LAN, WOL, PXE |
Support automatically power on when power restored after a sudden power loss | |
Audio Ports |
1x SPK, 1x MIC audio jack |
Construction |
On-board fan cooling |
Case |
Aluminum Case |
Dimension |
197x197x40mm |
Netweight |
0.8Kg |
OperatingTemperature |
-20℃to +60℃ |
RH |
5%~90% @30℃，Non-condensing |
Power Adapter |
Input AC100-240V, Output DC12V-5A |

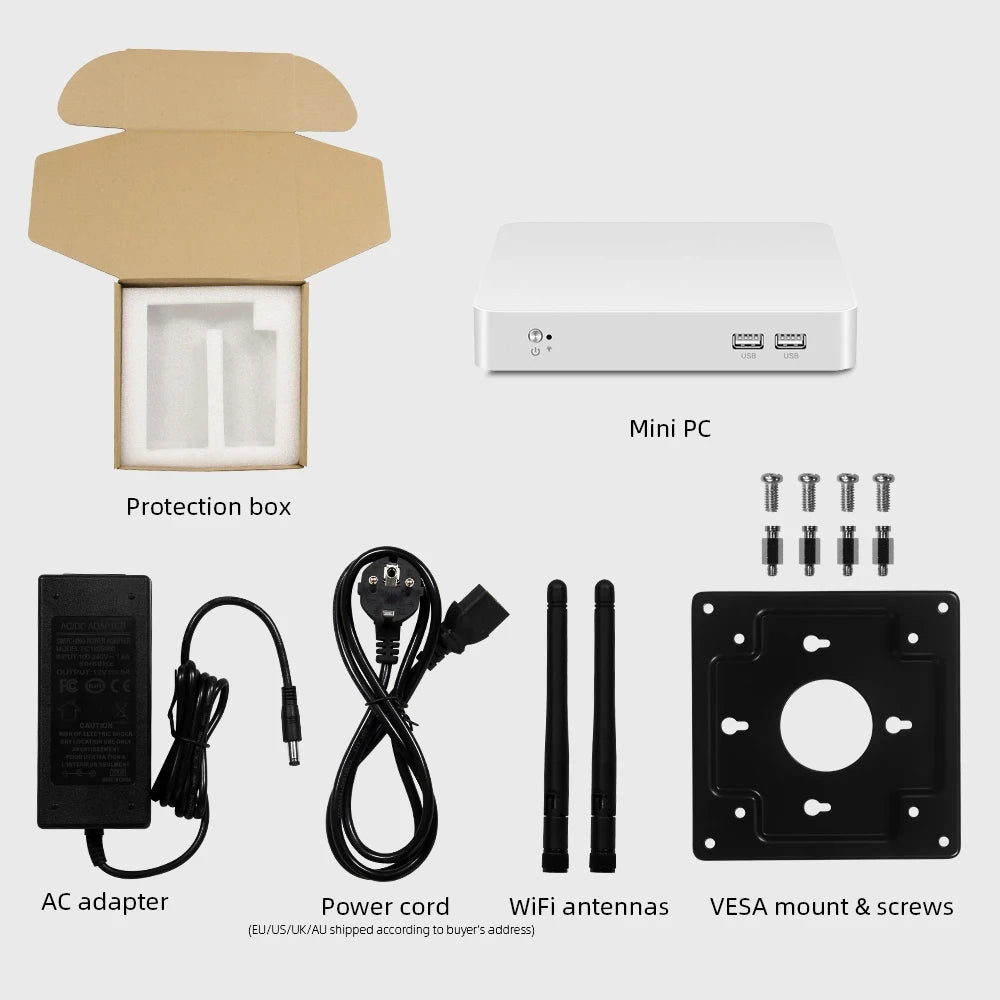

Package List |
1x Mini PC |
1x AC Adapter | |
1x Power cord ( EU AU US UK type plug shipped according to buyer’s address ) | |
1x SATA cable | |
1x User manual |
